Description

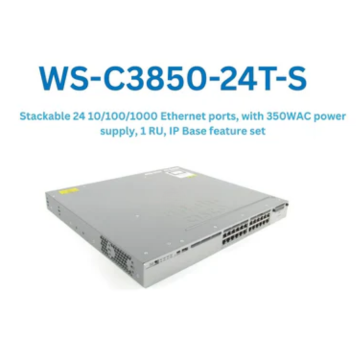

The Cisco WS-C3850-24T-S is a stackable enterprise-class Layer 3 switch designed to support modern, converged wired and wireless networks. Equipped with 24 × 10/100/1000 Gigabit Ethernet ports and the IP Base feature set, it delivers advanced routing capabilities while maintaining high availability and scalability.
Powered by Cisco’s Unified Access Data Plane (UADP) ASIC, this switch enables consistent policy enforcement, application visibility, and optimized traffic handling across both wired and wireless environments. With Cisco StackWise-480 technology, multiple switches can be stacked and managed as a single logical unit, providing up to 480 Gbps of stack bandwidth.
The WS-C3850-24T-S supports essential Layer 3 routing protocols such as OSPF stub, EIGRP stub, RIP v1/v2, and PIM stub, making it ideal for access-layer and aggregation-layer deployments in enterprise networks.
Key Features
-
24 × Gigabit Ethernet ports for high-speed connectivity
-
IP Base feature set with Layer 3 routing capabilities
-
Supports OSPF, EIGRP, RIP, and PIM (stub modes)
-
Cisco StackWise-480 with up to 480 Gbps stacking bandwidth
-
Stack up to 9 switches for scalable network expansion
-
UADP ASIC for unified wired-wireless access and application visibility
-
1 RU rack-mountable design
-
Used A++ condition, tested for reliability
Quick Specifications
| Specification | Details |
|---|---|
| Product Code | WS-C3850-24T-S |
| Enclosure Type | 1 RU |
| Feature Set | IP Base |
| Ports | 24 × 10/100/1000 Ethernet |
| Network Uplink Module Support | C3850-NM-4-1G, C3850-NM-2-10G |
| Maximum Stack Members | 9 |
| Stack Bandwidth | 480 Gbps |
| Switching Capacity | 92 Gbps |
| RAM | 4 GB |
| Flash Memory | 2 GB |
| APs per Switch/Stack | Up to 100 |
| Wireless Clients per Switch/Stack | Up to 2000 |
| Dimensions (H × W × D) | 4.45 × 44.5 × 45.0 cm |
| Package Weight | 17.49 kg |
