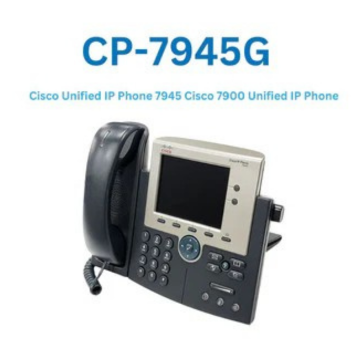

CISCO IP Phone CP-7945G

Model: CP-7945G Cisco 7900 Unified IP Phone
Detail:
Cisco Unified IP Phone 7945, Gig Ethernet, Color Cisco 7900 Unified IP Phone
Condition: Used A++

Model: CP-7945G Cisco 7900 Unified IP Phone
Detail:
Cisco Unified IP Phone 7945, Gig Ethernet, Color Cisco 7900 Unified IP Phone
Condition: Used A++
Category:

Description

CP-7945G Overview

Cisco Unified IP Phone 7945G demonstrates the latest advances in VoIP telephony, including wideband audio support, backlit color display, and an integrated Gigabit Ethernet port. It addresses the needs of transaction-type workers with significant phone traffic and the needs of those working with bandwidth-intensive applications on colocated PCs. This IP phone includes a large, backlit, easy-to-read color display for easy access to communication information, timesaving applications, and features such as date and time, calling party name, calling party number, digits dialed, and presence information. It also accommodates Extensible Markup Language (XML) applications that take advantage of the display. The phone provides direct access to two telephone lines (or combination of lines, speed dials, and direct access to telephony features), four interactive soft keys that guide you through call features and functions, and an intuitive four-way (plus Select key) navigation cluster. A hands-free speakerphone and handset designed for high-fidelity wideband audio are standard, as is a built-in headset connection.

Table shows the quick spec.

 Model  CP-7945G
 Dimensions (H x W x D)  8.2 x 10.5 x 6 in. (20.32 x 26.67 x 15.24 cm)
 Weight  3.5 lb (1.6 kg)
 Phone-Casing   Composition   Acrylonitrile butadiene styrene (ABS) plastic in textured dark gray color with silver   bezel
 Power  Supports IEEE 802.3af PoE (Class 3). 48VDC is required; it can be supplied locally at   the desktop using an optional AC-to-DC power supply (part number CP-PWR-CUBE-   3 or power injector CP-PWR-INJ. Local power options require a corresponding AC   country cord.
 Phone Software   Requirements  Supported in 8.3(2) and greater
 Call Control Compatibility  Supported in Cisco Unified Communications Manager Versions 4.1(3)sr5b,   4.2(3)sr2b, 4.3(1), 5.1.1(b), 5.1(2), 6.0(1) and greater

Supported in Cisco Unified Communications Express and SRST Version 4.1

 Signaling Protocols  Skinny Client Control Protocol (SCCP) and Session Initiation
